Cisco Firepower Firewall for Small Business Network Security: Your Best Defense Blueprint

When a creative agency loses three days of billable work because ransomware locks their file server, or when a photography studio discovers client images leaked through an unsecured guest network, the conversation shifts fast. Suddenly, “network security” stops being an abstract IT concern and becomes a business-survival question. For small businesses running Mac fleets, iPads in the field, and cloud apps that power daily operations, the challenge isn’t just having a firewall—it’s building network infrastructure that actually protects your work without requiring a full-time security team to manage it.

The Cisco Firepower firewall for small business network security offers enterprise-grade threat protection in packages designed for smaller networks, but it’s not a set-it-and-forget-it appliance. This guide walks you through what modern network defense looks like in 2025, where Cisco’s Secure Firewall (formerly Firepower Threat Defense) fits, and—critically—when simpler alternatives might serve you better.

Key Takeaways

• Firewalls are gatekeepers, not cure-alls: They control traffic flow and block known threats, but won’t protect against phishing emails or weak passwords.
• Segmentation is your secret weapon: Separating users, servers, guest Wi-Fi, and IoT devices limits damage when (not if) something gets compromised.
• Cisco Firepower delivers depth: Integrated intrusion prevention, URL filtering, and malware defense go beyond basic packet filtering—but require ongoing license renewals and monitoring.
• Management complexity matters: The Firepower 1000 series with FDM (Firewall Device Manager) suits single-site SMBs; FMC (Firewall Management Center) scales to multi-location deployments but adds overhead.
• Know when to walk away: If you lack dedicated IT support or budget for annual licensing, cloud-managed alternatives like Meraki or simpler UTM appliances may deliver better ROI.

Introduction: What “Secure Network Infrastructure” Means for Small Businesses in 2025

Network security used to mean “install antivirus and hope for the best.” In 2025, that approach is like locking your front door but leaving every window open. Secure network infrastructure means layering defenses—firewalls that inspect traffic, segmented networks that contain breaches, encrypted remote access for your team working from coffee shops, and continuous monitoring that catches suspicious behavior before it becomes a headline.

For creative studios, small agencies, and Mac-centric businesses, the stakes are uniquely high. You’re managing:

• High-value intellectual property: Client projects, unreleased campaigns, proprietary designs
• Personal data: Customer lists, employee records, and financial information are subject to compliance rules
• Deadline-driven workflows: Downtime doesn’t just cost money—it costs client trust and future contracts
• Distributed teams: Staff connecting from home offices, co-working spaces, even client sites

A photographer we worked with learned this the hard way when a compromised iPad on their studio’s guest network became a foothold for attackers who encrypted their entire Synology NAS—three years of client RAW files, gone. The firewall they had? A consumer-grade router with default settings and no segmentation. Network infrastructure isn’t just cables and boxes—it’s the architecture that decides whether a single mistake becomes a contained incident or a business-ending disaster.

Why Firewalls Are the Core Security Control (and What They Don’t Do)

Think of a firewall as the bouncer at your network’s door. It checks IDs (IP addresses), enforces the guest list (access rules), and kicks out troublemakers (malicious traffic). Modern next-generation firewalls (NGFWs) like Cisco’s Secure Firewall go further: they inspect the contents of packages people carry, looking for hidden weapons (malware) or fake credentials (spoofed applications).

What Firewalls Protect:

Perimeter defense: Block unauthorized inbound connections from the internet
Traffic segmentation: Enforce rules between internal network zones (users can’t reach the server VLAN unless explicitly allowed)
Threat prevention: Identify and stop known malware signatures, command-and-control callbacks, and exploit attempts
Application control: Permit Zoom and Slack while blocking BitTorrent or personal Dropbox
VPN termination: Provide encrypted tunnels for remote staff accessing internal resources

What Firewalls Don’t Stop:

Phishing emails: If an employee clicks a malicious link and enters their password on a fake site, the firewall never sees it
Insider threats: Authorized users can still exfiltrate data if they have legitimate access
Zero-day exploits: Brand-new vulnerabilities unknown to threat intelligence feeds slip through until signatures update
Weak passwords: Brute-force attacks against exposed services succeed if credentials are “Password123.”
Physical device theft: A stolen MacBook with no disk encryption is a firewall’s blind spot

Bottom line: Firewalls are essential, but they’re one layer in a defense-in-depth strategy. Pair them with endpoint protection (like Jamf Protect for Macs), strong authentication (password managers, MFA), employee training, and regular backups. No single product solves everything—anyone promising otherwise is selling snake oil.

Where Cisco Firepower Fits: Firepower 1000 Series + Cisco Secure Firewall Naming

Cisco’s firewall branding has evolved (some would say “confused”) over the years. Here’s the decoder ring for 2025:

For most small businesses, the Firepower 1010 (supports 15 users, 1 Gbps throughput) or Firepower 1120 (50 users, higher throughput) hits the sweet spot. These appliances run FTD software and include:

• Integrated switching: 8 built-in Ethernet ports (no separate switch needed for small deployments)
• PoE options: Power IP phones or access points directly from the firewall (1100-series models)
• Threat intelligence: Cisco Talos feeds (one of the world’s largest commercial threat research teams) update signatures continuously
• Flexible licensing: Essential (basic NGFW), Advantage (adds Cisco Talos threat intelligence), Premier (full suite including Secure Malware Analytics)

The Cisco Firepower firewall for small business network security shines when you need deep packet inspection and application awareness beyond what a basic router ACL provides. If you’re just blocking ports, you’re overpaying. If you need to allow Salesforce but block file uploads to personal cloud storage, enforce geo-blocking, or detect lateral movement after a compromise—now Firepower’s capabilities justify the investment.

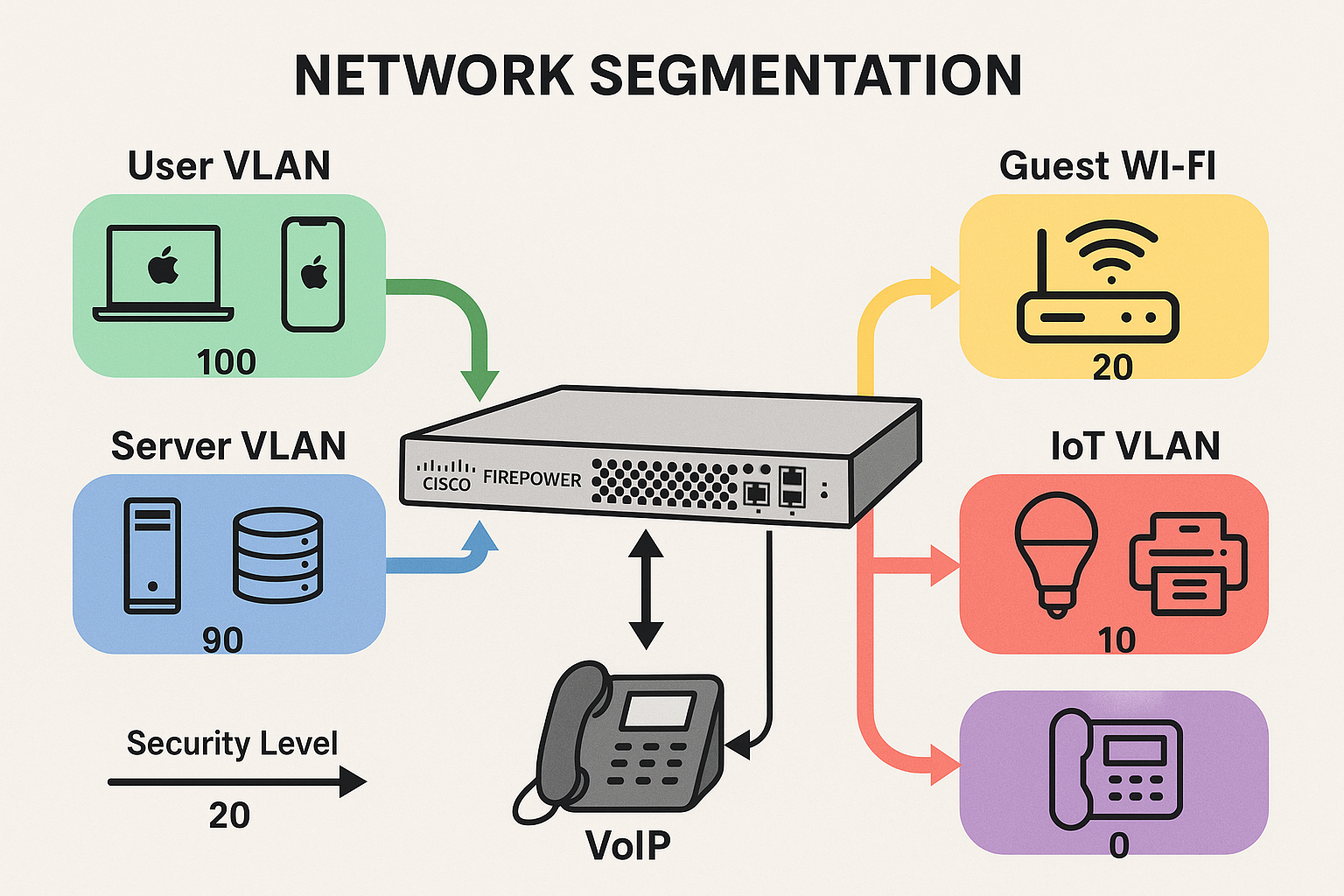

Typical Small-Business Network Layout (WAN, Core Switch, Wi-Fi, VLANs)

Before diving into firewall configuration, let’s map the battlefield. A well-designed small-business network in 2025 looks something like this:

[Internet (ISP)]
      ↓
[Cisco Firepower 1120] ← WAN interface (security level 0)
      ↓
[Core Managed Switch] ← Inside interface (security level 100)
      ├─ VLAN 10: Users (MacBooks, iPhones, iPads)
      ├─ VLAN 20: Servers/NAS (file storage, internal apps)
      ├─ VLAN 30: VoIP Phones
      ├─ VLAN 40: Guest Wi-Fi (isolated)
      └─ VLAN 50: IoT/Printers (security cameras, smart displays, networked printers)

Key Components:

WAN Connection: Your ISP’s fiber or cable modem plugs into the firewall’s “outside” interface. In Cisco terminology, this gets security level 0—the untrusted internet.

Inside Interface: Connects to your core switch, typically assigned security level 100—fully trusted by default. (Spoiler: you’ll create zones with different trust levels for segmentation.)

Managed Switch: Handles VLAN tagging so different device types live on separate subnets. A Cisco Catalyst 1000 series or even a quality Ubiquiti/Netgear managed switch works here; the firewall enforces rules between VLANs.

Wireless Access Points: Broadcast multiple SSIDs (staff network, guest network) mapped to different VLANs. A Mac user on the staff SSID gets VLAN 10; a client’s laptop on guest Wi-Fi gets VLAN 40 with no access to internal resources.

Servers/NAS: Your Synology, QNAP, or Mac mini server running file shares sits on VLAN 20. Users need access, but guests and IoT devices don’t.

This layout prevents the nightmare scenario where a compromised smart light bulb (yes, it happens) becomes a pivot point to your accounting files. Network segmentation is the single most cost-effective security upgrade most small businesses never implement—and it’s where the Cisco Firepower firewall for small business network security earns its keep.

Segmentation That Actually Works (Users, Servers, VoIP, Guest, IoT/Printers)

Flat networks—where every device can talk to every other device—are the digital equivalent of leaving all your office doors unlocked and your filing cabinets open. Segmentation uses VLANs (virtual LANs) and firewall policies to enforce “need-to-know” access.

Real-World VLAN Strategy:

VLAN 10: User Devices (Security Level 90)

• Who’s here: Employee MacBooks, iPhones, iPads, personal devices on BYOD policy
• Access needs: Internet, servers (VLAN 20), cloud apps (Office 365, Adobe Creative Cloud, Slack)
• Firewall rules: Allow outbound to internet, allow specific protocols to VLAN 20 (SMB for file shares, HTTPS for internal web apps), block everything else by default

VLAN 20: Servers & NAS (Security Level 95)

• Who’s here: File servers, internal databases, backup appliances, Mac mini running internal wiki
• Access needs: Inbound from VLAN 10 (users accessing files), outbound for updates and cloud backup
• Firewall rules: Deny direct internet access (updates go through proxy or firewall NAT), allow only required ports from VLAN 10 (SMB 445, AFP 548, HTTPS 443), log all access attempts

VLAN 30: VoIP Phones (Security Level 85)

• Who’s here: Desk phones, softphones on Macs
• Access needs: SIP trunk to phone provider, internal extension dialing
• Firewall rules: Allow SIP/RTP to provider’s IP ranges, block internet browsing (yes, some VoIP phones run Android and get compromised), isolate from user VLAN to prevent eavesdropping

VLAN 40: Guest Wi-Fi (Security Level 50)

• Who’s here: Client laptops, visitor phones, contractors
• Access needs: Internet only—zero access to internal resources
• Firewall rules: Allow outbound HTTP/HTTPS, block RFC1918 private IP ranges (10.x, 172.16.x, 192.168.x), rate-limit bandwidth to prevent abuse

VLAN 50: IoT & Printers (Security Level 60)

• Who’s here: Network printers, security cameras, smart thermostats, conference room displays
• Access needs: Limited internet (printers need driver updates, cameras upload to cloud NVR), users need to print
• Firewall rules: Allow users to initiate print jobs (port 9100, 631), block IoT devices from initiating connections to user VLAN, whitelist specific cloud services (printer manufacturer update servers, camera vendor), deny everything else

Why Security Levels Matter

Cisco Secure Firewall uses security levels (0-100) to simplify rule logic. By default:

• Traffic from higher security to lower security is permitted (inside users can reach the internet)
• Traffic from lower security to higher security is denied unless explicitly allowed (internet can’t reach your servers without a rule)

This “implicit trust” model means your VLAN 10 users (level 90) can access VLAN 20 servers (level 95) only if you write a rule allowing it. The firewall doesn’t assume “inside = safe”—you define trust boundaries based on business need.

Pro tip: A photography studio we worked with put their client file server on VLAN 20 and editing workstations on VLAN 10. When an editor’s Mac got hit with adware from a sketchy plugin download, the malware couldn’t spread to the server because firewall rules only allowed read/write on specific SMB shares, not administrative access. The infection stayed contained to one machine—annoying, but not catastrophic.

Cisco Firepower Building Blocks (Policies, IPS, URL Filtering, Malware Defense)

The Cisco Firepower firewall for small business network security isn’t just a packet filter—it’s a threat prevention platform with multiple inspection engines working in concert. Here’s what’s under the hood:

1. Access Control Policies (ACPs)

The foundation. ACPs define:

• Which traffic is allowed (users to internet, users to servers)
• Which traffic is blocked (guest VLAN to internal resources)
• Which traffic gets deeper inspection (unknown applications, suspicious file downloads)

Think of ACPs as the “guest list” the bouncer checks. You can create rules based on:

• Source/destination IP or subnet (VLAN 10 to VLAN 20)
• Application (allow Zoom, block BitTorrent)
• User identity (if integrated with Active Directory or Cisco ISE)
• URL category (allow “business software,” block “gambling”)

Best practice: Start with a “deny all” default policy, then explicitly allow required traffic. It’s more work upfront but prevents the “any-any” rules that turn firewalls into expensive routers.

2. Intrusion Prevention System (IPS)

Cisco’s Snort-based IPS engine inspects packet contents for attack signatures:

• SQL injection attempts against your web app
• Buffer overflow exploits targeting known vulnerabilities
• Command-and-control traffic patterns (malware phoning home)

IPS runs in inline mode, meaning it can block malicious packets in real-time, not just alert you after the fact. The Talos threat intelligence team updates signatures continuously—often within hours of a new vulnerability disclosure.

Gotcha: IPS inspection adds latency (typically 2-5ms) and consumes firewall CPU. On a Firepower 1010 running full threat inspection, expect ~500 Mbps real-world throughput instead of the 1 Gbps “firewall throughput” spec. Size your hardware accordingly.

3. URL Filtering

Block access to risky or unproductive sites by category:

• Security categories: Malware, phishing, botnets, anonymizers
• Productivity categories: Social media, streaming video, gaming (configure based on your culture—some agencies allow these, others don’t)
• Compliance categories: Adult content, illegal drugs, weapons (required for some industry regulations)

URL filtering happens at the DNS and HTTP/HTTPS layer. For encrypted traffic (HTTPS), the firewall inspects the SNI (Server Name Indication) field in the TLS handshake to categorize the site without decrypting the session (unless you deploy SSL decryption, which opens a whole other can of worms).

Real-world use: A design agency blocked “file sharing” categories after discovering employees were uploading client PSDs to personal Dropbox accounts. The firewall allowed Dropbox viewing (read-only) but blocked uploads—preserving workflow while preventing data leakage.

4. Advanced Malware Protection (AMP)

Cisco’s AMP inspects files crossing the firewall (email attachments, web downloads, file transfers) for malware. It combines:

• Signature matching: Known malware hashes (fast, high-confidence)
• Sandboxing: Suspicious files detonated in a cloud sandbox (Cisco Threat Grid) to observe behavior
• Retrospective analysis: If a file downloaded yesterday turns out to be malware today (new signature released), AMP alerts you and can quarantine it across your network

AMP requires a Threat or Malware license (part of Advantage or Premier tiers). It’s overkill for a three-person shop but invaluable for agencies handling client data or subject to compliance audits.

5. Application Visibility and Control (AVC)

Goes beyond port numbers to identify applications by behavior. The firewall recognizes “this is Zoom traffic” even if it’s running on a non-standard port, allowing granular policies:

• Allow Zoom video conferencing (business-critical)
• Block Zoom file transfer (data leakage risk)
• Rate-limit YouTube (preserve bandwidth)

AVC is baked into FTD; you’re paying for the intelligence Cisco’s research team builds into application signatures.

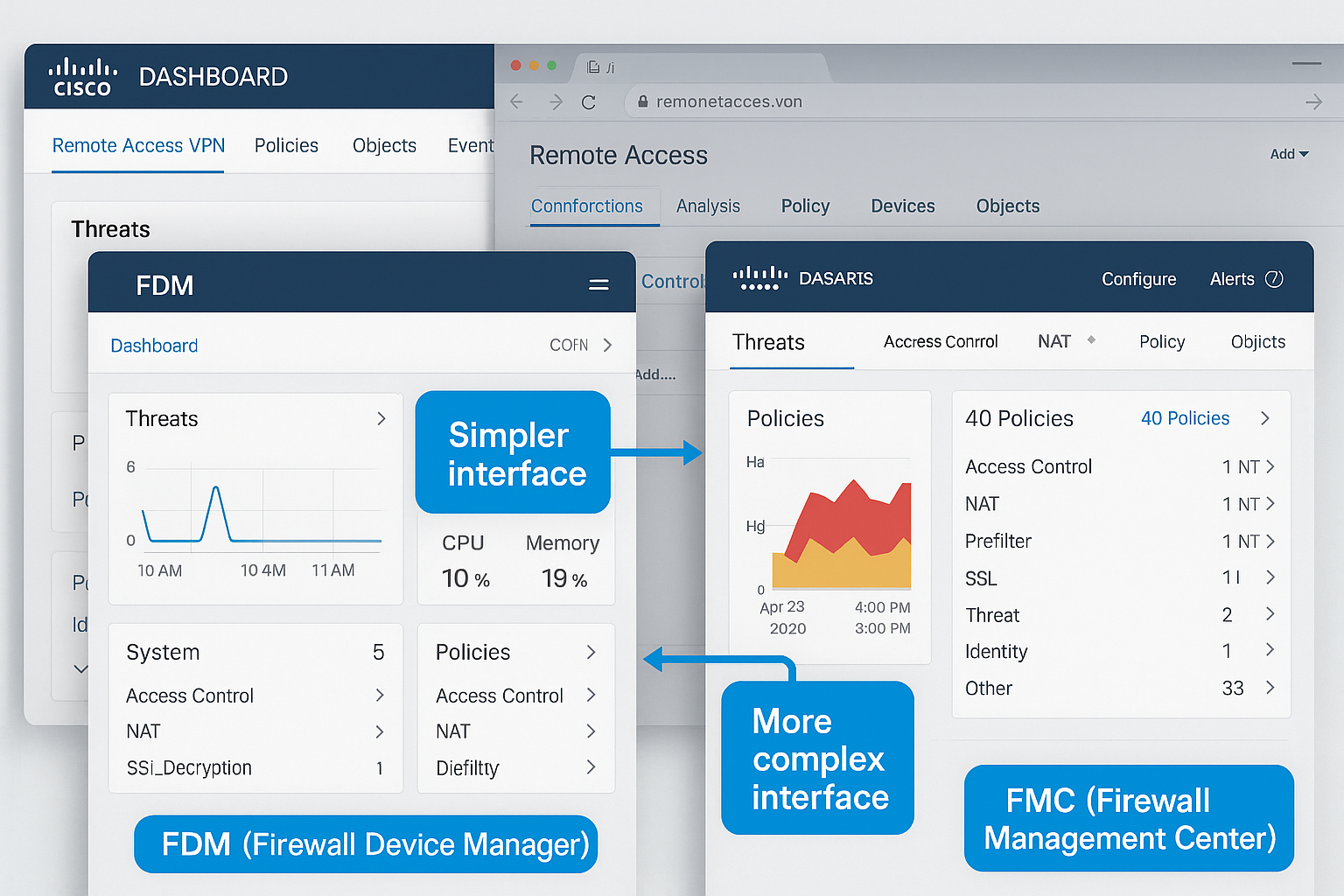

Management Options: FDM vs FMC (and When Each Makes Sense)

Cisco offers two management paths for Secure Firewall, and choosing wrong creates unnecessary pain.

FDM (Firewall Device Manager): The SMB Sweet Spot

What it is: A web-based GUI built into the Firepower appliance itself. Point your browser to the firewall’s management IP, configure policies, deploy changes—all from a clean, modern interface.

Best for:

• Single-site deployments (one firewall, maybe a backup for HA)
• Small IT teams or outsourced Mac IT consultants managing the firewall
• Businesses that need NGFW features without a dedicated security staff

Pros:
No separate management server to maintain
Simpler licensing (no FMC license required)
Faster learning curve (most admins are comfortable in a few hours)
Built-in wizards for common tasks (site-to-site VPN, remote access VPN)

Cons::
No separate management server to maintain
Limited to ~10 devices (fine for SMBs, but you’ll outgrow it if you expand to multiple branches)
Fewer advanced features (no multi-tenancy, limited automation)
Manual config backup (you’re responsible for exporting/storing configurations)

Real-world fit: A 25-person creative agency with one office and a Firepower 1120 running FDM. Their outsourced IT partner (that’s us) logs in quarterly to review rules, update firmware, and adjust policies as the team grows. Total management time: ~2 hours/quarter.

FMC (Firewall Management Center): Enterprise Scale

What it is: A centralized management platform (virtual appliance or hardware) that controls multiple Firepower devices across locations.

Best for:

• Multi-site businesses (HQ + branch offices)
• MSPs managing firewalls for multiple clients
• Enterprises needing centralized logging, reporting, and policy orchestration

Pros:
Manage hundreds of firewalls from one console
features (correlation rules, custom dashboards, API automation)
Centralized logging and threat analytics
Role-based access control (different admins for different sites)

Cons:
Requires separate hardware or VM (adds cost and complexity)
Steeper learning curve (plan on formal training or hiring experienced staff)
Overkill for single-site SMBs (you’re paying for capabilities you won’t use)

When to choose FMC: If you’re managing 3+ Firepower devices, need centralized compliance reporting, or plan to integrate with Cisco’s broader SecureX platform, FMC justifies the investment. For a single firewall protecting one office? Stick with FDM.

Remote Work: Remote Access VPN Basics + Common Pitfalls

In 2025, “the office” is wherever your MacBook is. Cisco Firepower supports remote access VPN (sometimes called “client VPN”) so staff working from home, coffee shops, or client sites can securely access internal resources.

How It Works:

1. VPN client software: Employees install Cisco Secure Client (formerly AnyConnect) on their Mac, iPhone, or iPad
2. Authentication: User enters credentials (local firewall account, Active Directory, or SAML via Okta/Azure AD)
3. Encrypted tunnel: All traffic between the device and firewall is encrypted (AES-256), preventing Wi-Fi eavesdropping
4. Access to internal resources: The remote device gets an IP address from a VPN pool (e.g., 10.99.0.0/24) and can reach VLAN 20 servers as if they were in the office

Configuration Checklist:

Split tunneling vs full tunneling: Split sends only internal traffic (10.x, 172.16.x, 192.168.x) through the VPN; internet traffic goes direct. Full tunneling routes everything through the firewall (better security, slower performance). Most SMBs choose split tunneling.
DNS settings: Push internal DNS servers to VPN clients so they can resolve fileserver.local hostnames
MFA enforcement: Require multi-factor authentication (Duo, Okta, Microsoft Authenticator) for VPN access—passwords alone are too risky in 2025
Bandwidth planning: 10 simultaneous VPN users on a Firepower 1010 (~150 Mbps VPN throughput) is fine; 50 users will saturate it. Size accordingly or consider cloud-delivered VPN (Cisco Umbrella SIG).

Common Pitfalls:

🚨 Overlapping IP ranges: If your home network is 192.168.1.0/24 and the office is also 192.168.1.0/24, routing breaks. Use unique subnets (office: 10.10.0.0/16, VPN pool: 10.99.0.0/24).
🚨 Firewall rules forgetting VPN: You configured VLAN 10 users to access VLAN 20 servers, but VPN users are on a different subnet (10.99.0.0/24). Add explicit rules allowing VPN pool → VLAN 20.
🚨 Certificate warnings: Cisco Secure Client validates the firewall’s SSL certificate. Use a trusted cert (Let’s Encrypt, DigiCert) or distribute your self-signed CA to employee Macs via MDM.
🚨 No kill switch: If the VPN drops, does traffic leak over the local network? Configure “block connections without VPN” in Secure Client profiles to prevent data exposure.

Story: A photography studio enabled VPN so their lead editor could work from home. First week, she couldn’t access the NAS. Troubleshooting revealed the firewall had a rule allowing VLAN 10 (office users) to VLAN 20 (servers) but no rule for the VPN subnet (10.99.0.0/24). Five-minute fix, but it cost half a day of confusion. Lesson: Test VPN access to every critical resource before rolling out to staff.

Logging & Visibility: What to Monitor and How to Respond

A firewall that blocks threats but doesn’t tell you about it is like a smoke detector with no battery. Logging and monitoring turn your Cisco Firepower firewall for small business network security into an early-warning system.

What to Log:

📊 Connection events: Every allowed/blocked session (source, destination, port, application, bytes transferred)
📊 Intrusion events: IPS detections (which signature fired, severity, target IP)
📊 File/malware events: AMP detections (file name, hash, disposition—clean/malicious/unknown)
📊 URL filtering events: Blocked site attempts (who tried to visit what, when)
📊 VPN events: Login successes/failures, session duration, data transferred

Where Logs Go:

• Local firewall storage: Limited (a few GB); fine for short-term review but not long-term retention
• Syslog server: Forward logs to a central server (free options: Graylog, Splunk Free; paid: Cisco SecureX, Arctic Wolf)
• FMC: If you’re running Firewall Management Center, it aggregates logs from all managed devices with powerful search and correlation

Key Metrics to Watch:

🔍 Top blocked destinations: Are users constantly hitting blocked sites? Maybe your URL category is too restrictive—or someone’s infected and trying to phone home to a botnet.
🔍 Intrusion event trends: A spike in IPS alerts targeting your web server might indicate a targeted attack or vulnerability scan.
🔍 Bandwidth hogs: Which applications/users consume the most bandwidth? Identify shadow IT (unauthorized cloud storage) or misconfigured backups.
🔍 Failed VPN logins: Repeated failures from the same username = credential stuffing attack. Lock the account and force a password reset.
🔍 Malware detections: Even if AMP blocked the file, someone downloaded it. Investigate the user’s device for other compromises.

Alerting Best Practices:

⚡ Critical alerts (malware detected, IPS high-severity event): Immediate email/SMS to IT contact
⚡ Warning alerts (repeated failed logins, unusual traffic patterns): Daily digest email
⚡ Informational logs: Review weekly or during monthly security check-ins

Reality check: Most small businesses don’t have a SOC (Security Operations Center) watching dashboards 24/7. That’s okay. Set up automated alerts for the scary stuff, and schedule a recurring calendar block (every Monday morning, 30 minutes) to review the week’s logs. Consistency beats perfection.

We’ve seen proactive threat management through continuous monitoring stop 99% of security problems before they impact business operations. A client’s firewall blocked 47 malware download attempts in one month—none of which the user even noticed because AMP silently quarantined the files. Without logging, they’d never know how close they came to a ransomware incident.

High Availability & Resilience: ISP Failover, Config Backups, Update Discipline

Your firewall is a single point of failure. If it dies, your internet dies. If its configuration corrupts, you’re rebuilding from memory. Resilience means planning for Murphy’s Law.

1. ISP Failover (Dual WAN)

Firepower 1100-series models support multiple WAN interfaces. Connect:

• Primary ISP (fiber, cable) to Outside interface
• Backup ISP (DSL, LTE, Starlink) to secondary interface

Configure policy-based routing or active/standby failover:

• Active/standby: Primary handles all traffic; backup kicks in if primary fails (health check: ping 8.8.8.8 every 10 seconds)
• Load balancing: Split traffic across both links (more complex, rarely needed for SMBs)

Cost-benefit: A second ISP runs $50-150/month. For a business where downtime costs $500/hour in lost productivity, it’s a no-brainer. For a solo consultant, maybe not.

2. Firewall High Availability (HA Pair)

Two Firepower appliances in active/standby mode:

• Active firewall handles all traffic
• Standby syncs configuration and connection state in real-time
• If active fails (hardware death, power loss), standby takes over in ~3 seconds

Requirements:

• Two identical Firepower models (both 1120s, both running same FTD version)
• Dedicated HA link (crossover cable or dedicated switch)
• Matching licenses on both units

Reality: HA pairs double your hardware cost. For most SMBs, good backups + spare hardware is more cost-effective. Keep a cold-spare Firepower 1010 on the shelf ($900); if the primary dies, restore config and swap it in within an hour.

3. Configuration Backups

FDM: Manually export backups (Device > System Settings > Backup/Restore) to a secure location (encrypted USB drive, cloud storage). Schedule this monthly at minimum.

FMC: Automated daily backups to remote SFTP server.

Pro tip: Test your backup restore process before you need it. We’ve seen admins discover their backup files were corrupted only when trying to recover from a failure. Quarterly fire drill: restore the backup to a test firewall and verify policies work.

4. Firmware & Patch Discipline

Cisco releases FTD updates on a ~quarterly cadence, with emergency patches for critical vulnerabilities. Firmware and patch management is critical—firewalls require constant updates to protect against newly discovered vulnerabilities.

Update strategy:
✅ Read release notes: Not every update is critical; some introduce bugs. Check Cisco’s field notices.
✅ Test in maintenance window: Schedule updates during low-traffic periods (Sunday 2 AM). Expect 10-15 minutes downtime.
✅ Snapshot before updating: Export config backup immediately before applying firmware.
✅ Monitor after update: Check logs for unexpected blocks or performance issues in the 48 hours post-update.

Never run end-of-life firmware. Cisco publishes EOL schedules years in advance; plan hardware refresh cycles accordingly. A Firepower 1010 released in 2019 will likely reach EoL around 2026-2027—start budgeting for replacement in 2025.

Hardening & Patch Hygiene: Reducing Exposure from Known Attack Patterns

Out-of-the-box firewall configs are designed for ease-of-setup, not security. Device hardening locks down the firewall itself to prevent it from becoming the attack vector.

Hardening Checklist:

🔒 Disable unused services: Disable HTTP management (use HTTPS only), disable Telnet (SSH only), turn off SNMP if you’re not using network monitoring tools.

🔒 Restrict management access: Don’t allow firewall management from the internet. Create a dedicated management VLAN or allow access only from specific admin IPs (your office, your home, your IT partner’s office).

🔒 Strong authentication: Change default passwords (Cisco ships with admin/Admin123—change it immediately). Use 16+ character passphrases, store in a password manager (1Password, Bitwarden).

🔒 Session timeouts: Auto-logout admin sessions after 10 minutes of inactivity. Prevents “I left my laptop unlocked” scenarios.

🔒 NTP (Network Time Protocol): Configure accurate time sync. Logs with wrong timestamps are useless for forensics. Use Cisco’s public NTP servers or your own internal NTP source.

🔒 Secure logging: If forwarding logs to a syslog server, use encrypted transport (TLS). Logs contain sensitive info (usernames, IP addresses, visited URLs).

🔒 Role-based access control (RBAC): If multiple people manage the firewall, create separate accounts with least-privilege permissions. Junior admin needs to check VPN status? Give them read-only access, not full config rights.

Patch Hygiene:

Device hardening should include securing management sessions, implementing session timeouts, disabling unused services, and configuring Network Time Protocol. Beyond the firewall OS itself, harden adjacent systems:

• Management workstation: The Mac you use to configure the firewall should have disk encryption (FileVault), up-to-date OS, and endpoint protection. A compromised admin laptop = compromised firewall.
• VLAN isolation: Put the firewall’s management interface on a dedicated VLAN (not VLAN 10 with user devices). Attackers who compromise a user Mac shouldn’t reach the firewall admin panel.
• Audit logs regularly: Review who logged into the firewall and when. Unexpected 3 AM login from an unfamiliar IP? Investigate immediately.

Story: A client’s firewall got breached because the previous IT provider left the management interface accessible from the internet with a weak password. Attackers found it via Shodan (a search engine for internet-connected devices), brute-forced the login, and pivoted into the internal network. Lesson: Management interfaces should never be internet-facing unless behind a VPN or protected by geo-blocking + MFA.

Common Mistakes (Flat Networks, “Any-Any” Rules, Blind Spots, Stale Licensing)

Even with a Cisco Firepower firewall for small business network security, poor implementation turns a Porsche into a paperweight. Here are the mistakes we see repeatedly:

❌ Mistake 1: Flat Networks (No Segmentation)

What it looks like: Single VLAN for everything—users, servers, printers, guest Wi-Fi all on 192.168.1.0/24.

Why it’s bad: Compromised guest laptop can directly attack your file server. Malware spreads laterally with zero friction.

Fix: Implement the VLAN strategy outlined earlier. Even basic segmentation (users vs servers vs guests) blocks 80% of lateral movement attacks.

❌ Mistake 2: “Any-Any” Rules

What it looks like: Access policy that allows “any source” to “any destination” on “any port/protocol.”

Why it’s bad: The firewall becomes a router—it passes traffic without inspection. You’re paying for NGFW features you’re not using.

Fix: Build rules from specific to general. Allow “VLAN 10 to VLAN 20 on SMB (445)” instead of “any to any on any.” Yes, it’s more work. Yes, it’s worth it.

❌ Mistake 3: Ignoring Encrypted Traffic

What it looks like: 90% of web traffic is HTTPS (encrypted). The firewall sees the destination IP but can’t inspect the payload.

Why it’s bad: Malware delivered over HTTPS bypasses URL filtering and AMP unless you deploy SSL decryption (which has its own privacy/performance trade-offs).

Fix: At minimum, enable encrypted visibility (inspecting TLS handshake metadata without decrypting). For high-security environments, deploy SSL decryption with proper legal/HR policies (employees must be notified).

❌ Mistake 4: Stale Licensing

What it looks like: Firewall running with expired Threat or Malware licenses. IPS signatures stop updating, URL categories go stale, AMP can’t check new malware hashes.

Why it’s bad: You’re protected against 2023 threats but blind to 2025 attacks. Ransomware variants released last month sail right through.

Fix: Track license expiration dates in your calendar (set reminders 60 days before renewal). Budget for annual renewals ($300-1,200/year depending on tier). Treat it like insurance—you hope you don’t need it, but you’re screwed without it.

❌ Mistake 5: No Monitoring/Alerting

What it looks like: Firewall deployed, rules configured, then… silence. No one checks logs until something breaks.

Why it’s bad: Breaches go undetected for weeks. The firewall blocked 500 malware attempts last month—did anyone notice? Did anyone investigate why those files were being downloaded?

Fix: Set up automated alerts (covered earlier) and schedule recurring log reviews. Even 15 minutes/week makes a difference.

❌ Mistake 6: Forgetting Physical Security

What it looks like: Firewall sitting on an open shelf in a shared office space, console cable dangling.

Why it’s bad: Management interfaces should be physically secured in restricted-access rooms with locking racks to prevent unauthorized firewall modifications. Physical access = game over. Attacker plugs into the console port, resets to factory defaults, owns your network.

Fix: Lock the firewall in a server closet or rack. Disable console port after initial setup (or require password for console access). Treat it like you’d treat the cash register—not everyone gets keys.

When NOT to Choose Firepower (Complexity, Staffing, Cost) + Alternatives to Consider

Cisco Firepower is a powerful platform, but it’s not the right fit for every small business. Here’s when to consider alternatives:

🚫 You Lack Dedicated IT Support

Reality: FTD isn’t “set and forget.” Firmware updates, rule tuning, log review, and troubleshooting require networking knowledge. If you’re a solo creative professional or 5-person agency with no IT staff and no outsourced partner, Firepower’s learning curve will frustrate you.

Better fit: Cloud-managed firewalls like Cisco Meraki MX, Ubiquiti UniFi Dream Machine Pro, or Firewalla Gold. These offer simpler web dashboards, auto-updates, and less operational overhead. You sacrifice some advanced features (deep packet inspection isn’t as robust) but gain manageability.

🚫 Budget Constraints

Reality: Firepower 1010 hardware runs ~$900-1,200. Add licensing:

• Essential (basic NGFW): ~$300/year
• Advantage (adds Talos threat intel): ~$600/year
• Premier (full suite): ~$1,200/year

Total first-year cost: $1,500-2,400. Annual renewals: $300-1,200. For a 3-person startup, that’s steep.

Better fit: Unified Threat Management (UTM) appliances like Fortinet FortiGate 40F ($500 + $200/year licensing), WatchGuard Firebox T20 ($600 + $250/year), or open-source pfSense/OPNsense (free software, $300-500 hardware). You get 80% of the protection at 40% of the cost.

🚫 Very Simple Needs

Reality: If your “network” is 5 Macs, a NAS, and guest Wi-Fi—no servers, no VPN, no compliance requirements—Firepower is overkill.

Better fit: A quality business-grade router with basic firewall (Ubiquiti EdgeRouter, Mikrotik) plus endpoint protection on each Mac (Jamf Protect, Malwarebytes, Sophos Home Premium). Focus budget on backups and endpoint security instead of network infrastructure.

🚫 Multi-Site Without FMC

Reality: Managing 3+ Firepower devices via FDM (logging into each individually) is tedious and error-prone.

Better fit: Either invest in FMC (adds $2,000-5,000 depending on VM vs hardware) or choose a cloud-managed platform (Meraki, Palo Alto Prisma Access) where one dashboard controls all sites.

✅ When Firepower Is the Right Choice

You’re a good fit if:

• 15-100 users needing enterprise-grade threat protection
• Compliance requirements (HIPAA, PCI-DSS, CMMC) demanding NGFW with IPS + malware defense
• Dedicated IT staff or trusted outsourced partner (like MacWorks 360) managing the firewall
• Budget for annual licensing and periodic hardware refresh (5-7 year lifecycle)
• Complex network (multiple VLANs, site-to-site VPN, remote access VPN, cloud integration)

Real-world example: A 40-person creative agency handling Fortune 500 client campaigns chose Firepower 1120 with Premier licensing. They needed:

• Segmentation (client projects isolated from internal ops)
• DLP (preventing accidental upload of unreleased campaigns to personal Dropbox)
• Remote access VPN for freelancers
• Compliance reporting for client audits

A simpler firewall couldn’t deliver those capabilities. The $3,000/year total cost (hardware amortized + licensing) was 0.5% of their annual revenue—cheap insurance against a breach that could cost them their largest client.

Practical Deployment Checklist (Pre-Cutover, Cutover, Post-Cutover Validation)

Zero-downtime onboarding processes allow new firewall deployments to occur while the network remains fully operational—crucial for professional services firms preventing lost billable hours. Here’s how we deploy Firepower firewalls without disrupting business operations:

Phase 1: Pre-Cutover (1-2 Weeks Before)

✅ Document current network: Map IP subnets, VLANs, critical servers, internet bandwidth, ISP details
✅ Define security policy: Which VLANs need access to what? Guest Wi-Fi isolation? VPN user groups?
✅ Order hardware & licenses: Firepower appliance, support contract, Threat/Malware licenses
✅ Build config offline: Set up the Firepower in a lab/test environment, configure interfaces, VLANs, access rules, VPN
✅ Test VPN connectivity: Have 2-3 staff test remote access from home before go-live
✅ Prepare rollback plan: Keep old firewall/router config backed up; know how to revert in 5 minutes if deployment fails
✅ Communicate to users: “Saturday 6 AM-10 AM, internet may be briefly unavailable during firewall upgrade. VPN instructions attached.”

Phase 2: Cutover (Maintenance Window)

🔧 T-minus 30 min: Verify all stakeholders available (IT lead, network tech, someone from business side to test apps)
🔧 T-minus 15 min: Export final backup of old firewall config
🔧 T-0: Disconnect old firewall WAN, connect Firepower WAN (internet now flows through new firewall)
🔧 T+5 min: Verify internet connectivity from user VLAN (ping 8.8.8.8, browse to google.com)
🔧 T+10 min: Test server access (can user VLAN reach file shares on server VLAN?)
🔧 T+15 min: Test guest Wi-Fi (can guest devices reach internet but not internal resources?)
🔧 T+20 min: Test VPN (remote user connects, accesses internal file server)
🔧 T+30 min: Monitor firewall logs for unexpected blocks or errors

If something breaks: Revert to old firewall, troubleshoot offline, reschedule cutover. Don’t troubleshoot in production during business hours.

Phase 3: Post-Cutover Validation (First Week)

📋 Day 1: Monitor logs hourly. Watch for:

• Unexpected blocked traffic (legitimate apps getting denied)
• Performance issues (slow internet, VPN lag)
• User complaints (can’t print, can’t access server)

📋 Day 2-3: Review IPS events. Are you seeing false positives (legitimate traffic flagged as attacks)? Tune signatures or create exceptions.

📋 Day 4-7: Validate backups, document final config, update network diagrams, train any additional admins.

📋 Week 2: Schedule “lessons learned” meeting. What went well? What would you do differently next time?

Pro tip: Deploy during your slowest business period (holiday week, end of quarter after big project ships). A photography studio we worked with scheduled their firewall upgrade the week between Christmas and New Year’s when most staff were off—zero user impact.

FAQ

What’s the difference between Cisco Firepower and Cisco ASA?

ASA (Adaptive Security Appliance) is Cisco’s legacy firewall platform—rock-solid stateful firewall, excellent VPN performance, but limited NGFW features. Firepower Threat Defense (FTD) is the next-gen platform with integrated IPS, malware defense, and application control. Cisco still sells ASA for customers who need maximum VPN throughput or prefer the classic CLI, but FTD is the strategic direction. For new deployments in 2025, choose Firepower unless you have a specific reason to stick with ASA.

Can Firepower protect Mac-specific threats?

Firepower’s Advanced Malware Protection (AMP) detects Windows, Mac, and Linux malware. It inspects file hashes and behaviors, not just Windows executables. That said, endpoint protection (Jamf Protect, Sophos, Malwarebytes) is still essential—the firewall catches threats crossing the network, but endpoint tools catch threats already on the device (malicious browser extensions, adware, phishing).

How much bandwidth does IPS inspection consume?

Latency: 2-5ms added to each connection (usually imperceptible).
Throughput: A Firepower 1010 rated for 1 Gbps “firewall throughput” delivers ~500 Mbps with full threat inspection (IPS + AMP + URL filtering) enabled. If you have gigabit internet, size up to a Firepower 1120 or 1140 to avoid bottlenecks.

Do I need FMC for a single firewall?

No. FDM (Firewall Device Manager) is perfect for single-site, single-firewall deployments. FMC adds value when managing 3+ devices, needing centralized logging, or requiring advanced automation. Don’t over-engineer.

Can I run Firepower in the cloud (AWS, Azure)?

Yes. Cisco offers FTDv (Firepower Threat Defense Virtual) for cloud deployments. Use cases:

• Protect workloads in AWS/Azure VPCs
• Secure site-to-site VPN between on-prem and cloud
• Centralized internet egress for multi-cloud environments

Licensing is consumption-based (pay for throughput). For most SMBs, a physical appliance on-prem is simpler and cheaper.

What happens if my Firepower license expires?

Immediate impact: Threat intelligence updates stop. IPS signatures, URL categories, and AMP malware definitions freeze at the last update before expiration.
Long-term risk: New threats emerge daily. Within weeks, your “next-gen” firewall is blind to current attacks.
Grace period: Cisco typically gives 30-60 days post-expiration before hard-blocking features, but don’t rely on it. Renew on time.

How do I integrate Firepower with Apple Business Manager / Jamf?

Firepower and MDM (Mobile Device Management) serve different layers:

• Firepower: Network-level control (which devices can reach which servers, blocking malicious sites)
• Jamf/ABM: Device-level control (app deployment, configuration profiles, device enrollment)

Integration points:

• Use Jamf to push Cisco Secure Client (VPN) to managed Macs/iPads
• Configure Firepower to allow Jamf’s cloud IPs (required for device check-in)
• Combine network segmentation (Firepower VLANs) with device compliance policies (Jamf: “only encrypted, up-to-date Macs can access corporate Wi-Fi”)

They’re complementary, not competitive. Secure device onboarding uses device registration keys or serial numbers with pre-provisioned configurations via device templates to streamline deployment—Jamf handles the Mac/iPad provisioning, Firepower enforces network access policies.

Conclusion: Building Defense-in-Depth Without Enterprise Complexity

The Cisco Firepower firewall for small business network security delivers enterprise-grade protection—intrusion prevention, malware defense, application control, encrypted remote access—in packages sized for teams of 15-100. It’s not the simplest firewall on the market, nor the cheapest, but for businesses handling sensitive client data, facing compliance requirements, or needing robust segmentation to protect creative workflows, it hits the sweet spot between capability and manageability.

Key principles to take away:

1. Segmentation is non-negotiable: Separate users, servers, guests, and IoT. A flat network is a liability in 2025.
2. Firewalls are one layer: Pair network defenses with endpoint protection, strong authentication, employee training, and backups.
3. Licensing is ongoing: Budget for annual renewals. An unlicensed NGFW is a expensive paperweight.
4. Management matters: FDM for single-site simplicity, FMC for multi-site scale. Choose based on your reality, not your aspirations.
5. Know when to walk away: If you lack IT support or budget, simpler cloud-managed options (Meraki, UniFi) or UTM appliances (Fortinet, WatchGuard) deliver 80% of the value at 40% of the cost.

At MacWorks 360, we’ve deployed Cisco Secure Firewall solutions for creative agencies, photography studios, and small businesses across diverse industries. Our approach: practical solutions with educational value. We don’t just configure the firewall and disappear—we walk your team through the “why” behind each rule, train you on log reviews, and build a long-term consulting relationship focused on proactive risk management, not emergency firefighting.

Network security isn’t a product you buy; it’s a discipline you practice. The firewall is your foundation, but the real protection comes from consistent patch hygiene, monitoring discipline, and a culture where security supports your work instead of slowing it down.

Ready to Secure Your Network the Right Way?

Whether you’re evaluating the Cisco Firepower firewall for small business network security, need a second opinion on your current setup, or want a partner who speaks Mac fluency and understands creative workflows, MacWorks 360 is here.

Schedule a complimentary 30-minute network security assessment:

• We’ll review your current infrastructure (firewalls, VLANs, remote access, endpoint protection)
• Identify gaps and quick wins (many improvements cost $0, just better configuration)
• Provide a customized roadmap: Firepower deployment, alternative solutions, or hybrid approaches
• No sales pressure—just calm clarity on what your business actually needs

📞 Contact us: [Insert contact form/phone/email]
🌐 Learn more: [Link to MacWorks 360 network security services page]

Peace of mind through technology solutions isn’t about the fanciest gear—it’s about the right tools, properly deployed, with a partner who’s there when you need them. Let’s build your defense-in-depth strategy together.

References

[1] Cisco Secure Firewall documentation: Security levels and traffic flow control (Cisco Systems, 2025)
[2] Role-based access control best practices for firewall management (NIST Cybersecurity Framework, 2024)
[3] Hardware vs software firewall cost-benefit analysis for SMBs (Gartner SMB Security Report, 2024)
[4] Security policy frameworks for small business networks (SANS Institute, 2024)
[5] Firepower Threat Defense configuration guide (Cisco Systems, 2025)
[6] Zero-downtime network migration strategies (Network World, 2024)
[7] Proactive threat management effectiveness study (Cisco Talos Intelligence, 2024)
[8] Device hardening checklist for Cisco Secure Firewall (CIS Benchmarks, 2025)
[9] Secure device onboarding with FTD and FMC (Cisco DevNet, 2025)
[10] Physical security requirements for network infrastructure (ISO 27001, 2024)

SEO Meta Title & Description

Meta Title (58 characters):
Cisco Firepower Firewall for Small Business Security 2025

Meta Description (158 characters):
Complete guide to Cisco Firepower firewall for small-business network security: segmentation, threat prevention, VPN, and when simpler options are better.
